Product Description
-

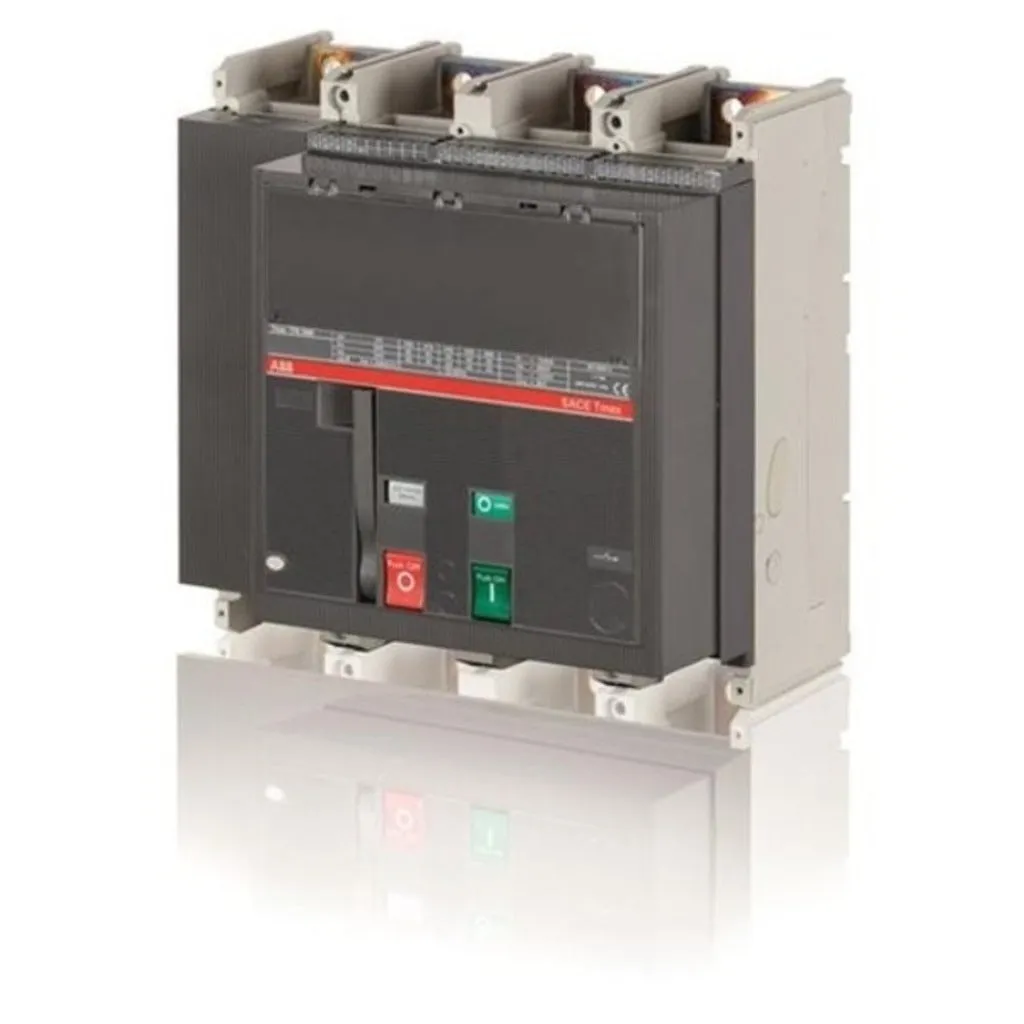

Switch-Disconnector Tmax T7D 1600 Four-Pole With Front Terminals
-
High breaking capacity in compact dimensions
-
High values of short circuit breaking capacity are guaranteed at different voltage levels, without compromising overall dimensions
-
Flexibility of use
-
Thermomagnetic and electronic trip units are available for use in AC/DC or in AC only. It is possible to interchange trip units keeping the same breaking part, so that installation can be upgraded with fewer costs
-
Advanced protection
-
A complete range of electronic trip units is suitable for different level of protection, even enhancing selectivity values with Early Fault Detection and Prevention algorithm
Product Specification
|
Brand |
ABB |
|
Product Type |
Switch Disconnector |
|
Product Id |
1SDA062043R1 |
|
Number of Poles |
4 |
|
Product Main Type |
SACE Tmax T |
|
Product Name |
Moulded Case Circuit Breaker |
|
Rated Operational Voltage |
690 V AC , 750 V DC |
|
Rated Uninterrupted Current (Iu) |
1600 A |
|
Standards |
IEC 60947 |
|
Suitable For |
T7M |
|
Terminal Connection Type |
Fixed Circuit-Breakers , Front |
|
Version |
F |
|
Product Net Width |
280 mm |
|
Product Net Height |
268 mm |
|
Product Net Depth / Length |
178 mm |
|
Product Net Weight |
14 kg |
