Product Description
-

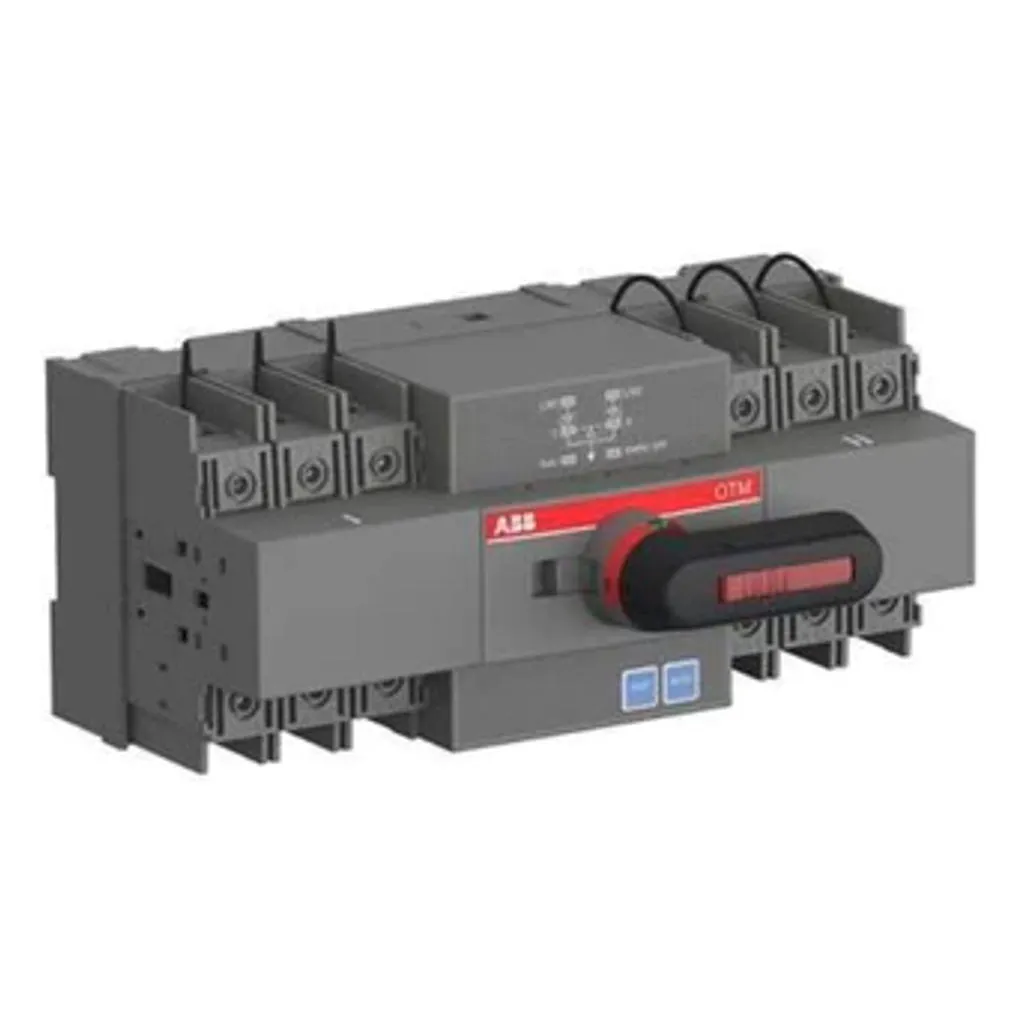

Automatic transfer switches, I - O - II operation Supplied with bridging bars and direct mounted handle
-
Rated Impulse Withstand Voltage (Uimp) : 8 kV
-
Rated Insulation Voltage (Ui) : 800 V
-
Rated Short-time Withstand Current (Icw) : for 1 s 2.5 kiloampere rms
-
Motor Operational Voltage : 380…415 V AC
-
Pollution Degree : 3
-
Handle Type : Direct mounted handle
-
Fourth Pole Type : Switched - Simultaneous Function
-
Position of Line Terminals : Supplies on Top - Load on Bottom
-
Controller Type : 20D
-
Number of Poles : 3
-
Product Net Height : 103 mm
-
Product Net Depth / Length : 131 mm
-
Product Net Weight : 1.75 kg
Product Specification
|
Rated Current (A) |
Product Type |
Product ID |
|
63 |
OTM63F3C20D400C |
1SYN151423R1001 |
|
63 |
OTM63F3C21D400C |
1SYN151424R1001 |
|
125 |
OTM125F3C20D400C |
1SYN151419R1001 |
|
125 |
OTM125F3C21D400C |
1SYN151420R1001 |
