Product Description

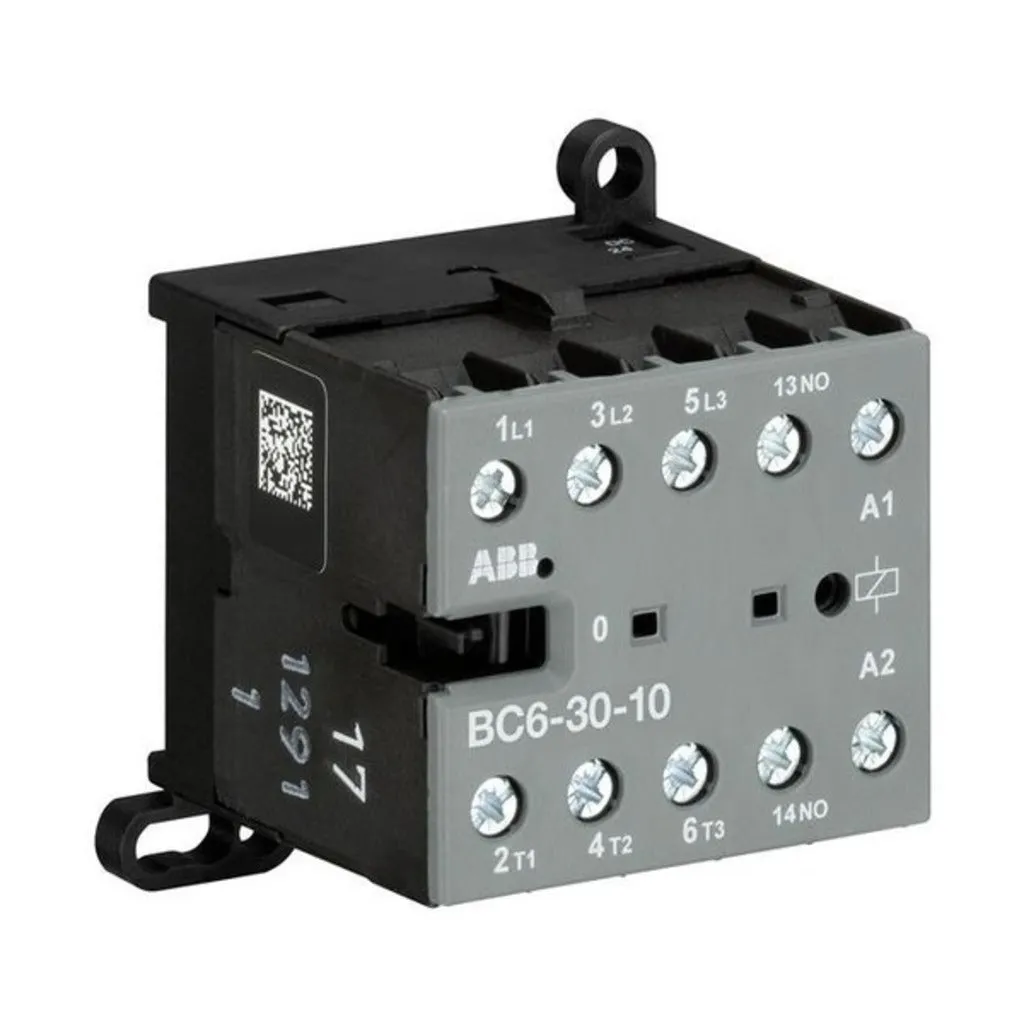

• The BC6-30-10 mini contactor is a compact 3 pole contactor with 1 auxiliary contact and screw terminals

• They are ideally suited for applications where reliability is a must and space is at a premium

• Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 4 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals

• Further features are the noiseless and hum-free coil, a switch position indication and the integrated possibility for rail or wall mounting

• Number of Poles : 4

• Mini Contactor Type : Mini Contactor

• Rated Insulation Voltage (U_i) : 690 V , acc. to UL/CSA 600 V

• Number of Main Contacts NC : 0

• Number of Main Contacts NO : 3

• Rated Short-time Withstand Current (I_cw) : at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 64 A

• Number of Auxiliary Contacts NC : 0

• Number of Auxiliary Contacts NO : 1

• Conventional Free-air Thermal Current (I_th) : Main Circuit 20 A

• Mechanical Durability : 10000000 cycle

• Product Net Width : 52.5 mm

• Product Net Height : 57.5 mm

• Product Net Depth / Length : 46.5 mm

• Product Net Weight : 0.175 kg
