The CozIR®-A CO2 sensor is designed to monitor carbon dioxide levels indoors. It is ideal for monitoring CO2 in buildings, schools, offices or anywhere indoor air quality is important for personal comfort of the occupants.
Features
- Low Power Consumption
- 2 measurements per second
- Sensor Life Expectancy > 15 years
- Industry-Standard Serial Communication
Models

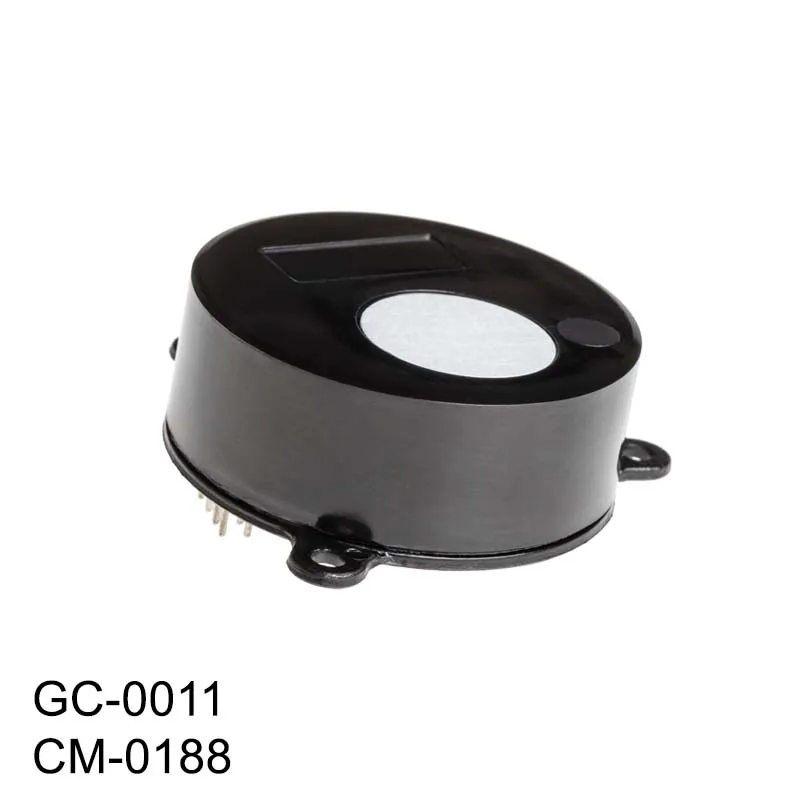

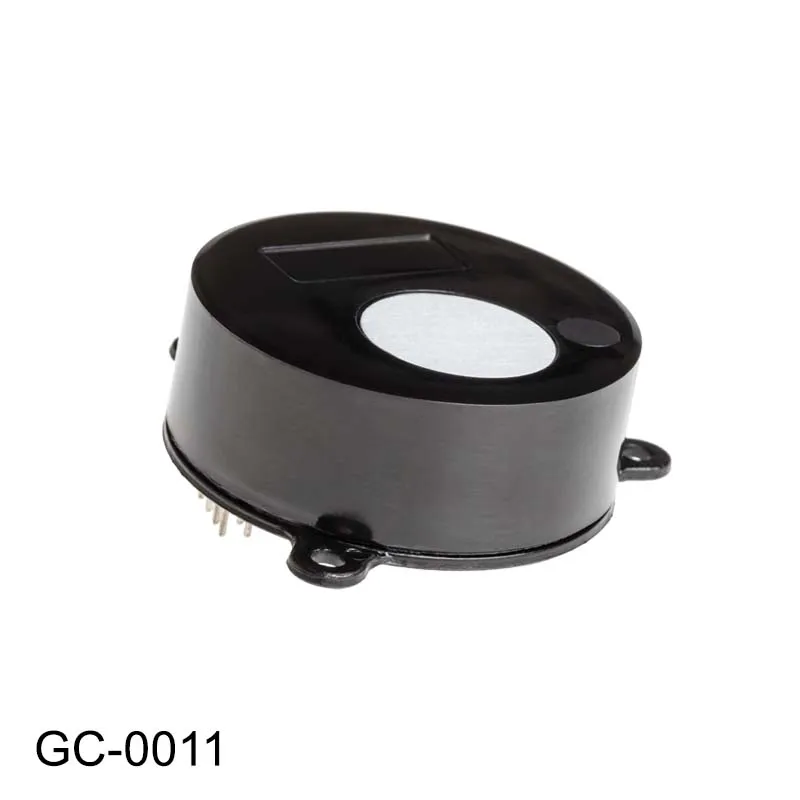

GC-0011 CozIR®-A 5,000 ppm CO2 Sensor - for integration into high-volume OEM products. for wholesale pricing on large quantities of this sensor.

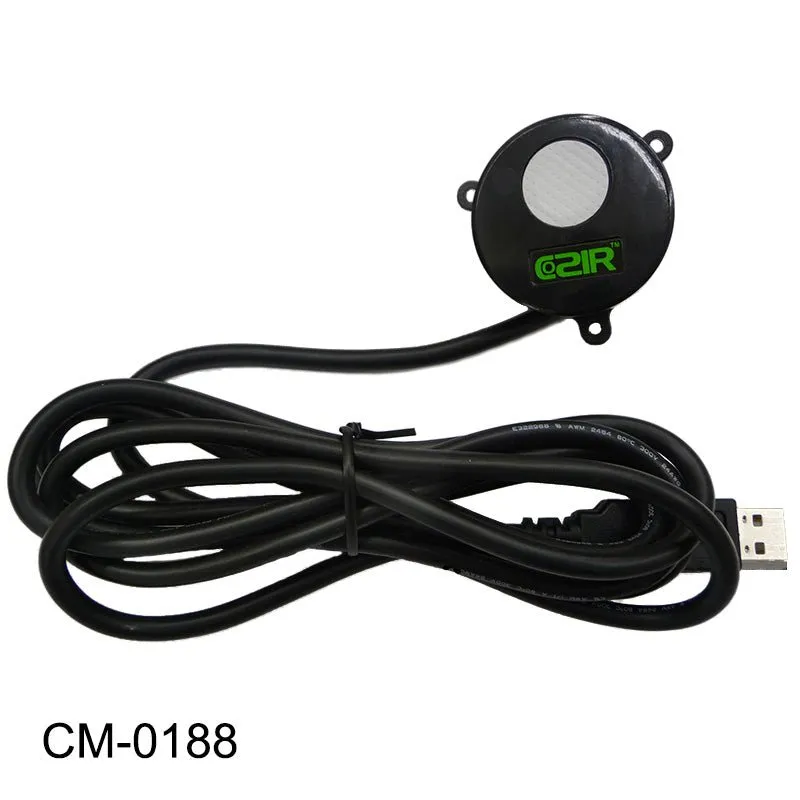

CM-0188 CozIR®-A Development Kit - Easy to use, simply plug the sensor module into your PC via USB. Use our free GasLab® software to measure and graph carbon dioxide, to configure the sensor or for data logging.
CM-0047 Tube Cap Adapter - This adapter has been discontinued. If you are looking for a tube cap adapter, please contact us directly at [email protected] - you MUST provide us with which sensor you have purchased for a proper solution.
Specifications
- Sensing Method: NDIR with Gold-plated optics
- Sample Method: Diffusion (Optional Sampling with Tube Cap)
- Measurement Range: 0-5,000 ppm (parts per million)
- Measurement Rate: 0.5 sec / measurement
- Accuracy: ±50 ppm ± 3% of reading
- Resolution: 1ppm
- Pressure Dependence: 0.13% of reading per mm Hg
- Noise measurement: < 10 ppm
- Auto Calibration Default (can be changed in software)
- Serial communication 9600/ 8/ 1/ n
- Analog voltage output proportional to CO2 concentration
- Sensor Life Expectancy: > 15 years
General Performance
- Warm-up Time: < 10 seconds (1.2s to first reading)
- Operating Conditions: 0°C to 50°C, 0-95% RH, 500 mbar to 40 bar
Electrical/Mechanical
- Power Input: 3.3-5.5VDC (3.3V recommended)
- Average Power Requirements: < 1.5mA @ 3.3V
- Peak current: 33mA
- Weight 20 grams
Warranty
- 90 days - See CO2Meter Terms and Conditions.
Free Easy-to-use GasLab™ Software
This device uses GasLab® software for setup, calibration, data logging, and real-time data analysis. GasLab® makes it easy to export data into a .CSV file that can be imported into any industry-standard software or spreadsheet. GasLab® runs on Windows XP or higher, and free to use with our products
