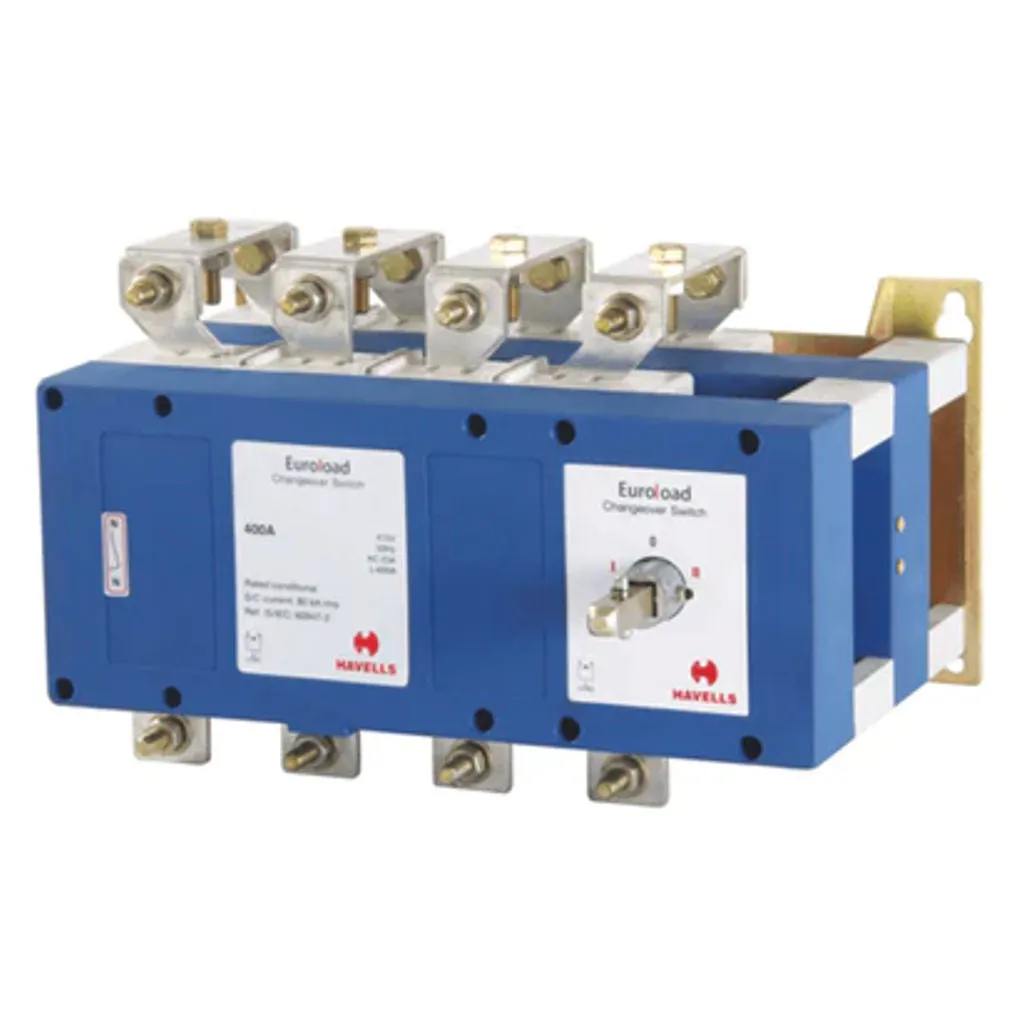

Widest Range from 40A - 3150A
-
Offers widest Range of Operational Current depending on Load Requirement
Four Pole with Advance Neutral
-
Neutral Pole makes First and breaks Last thereby providing Safety
Separate Main and Arching contacts
-
During Breaking operation, Arching takes place only on Arching Contacts thus increasing life of Switch
Totally Enclosed Mechanism
-
Allows for dustproof and Smoother operation
Extended Outgoing Terminal
-
Provides ease of Termination
Line & Load Reversibility
-
Allows flexibility for Source & Load connections
Add-On Auxiliary Switch
-
It enables facility for signalling indications and interlocking in circuits
Adjustable operating shaft
-
Allows for ease of mounting within the depth of the panel
Handle with door interlock and padlock facility
-
Enables safety during Operation / Non Operation of the Switch
Choice of Usage
-
Available in open execution / sheet steel enclosure
Note: This Product order will be proceessed only On Request.
Product Specifications
|
Basic Features. |
|
|
Standard conformity |
IS / IEC 60947-3 |
|
Rated operational voltage |
415V AC |
|
Rated impulse voltage |
1000V AC |
|
Utilisation Category |
AC-23A |
|
Rated frequency |
50Hz |
|
Operating altitude |
2000 metres |
|
Humidity |
0 - 90% |
|
Rated impulse voltage |
8 kV |
|
Rating Range |
400A - 630A |
|
Type of Execution |
|
|
Open Execution |
IHCNFO0400 |
|
IHCNFO0630 |
|
|
With SS Enclosure |
IHCNFE0400 |
|
IHCNFE0630 |
|
