PRESTO W56

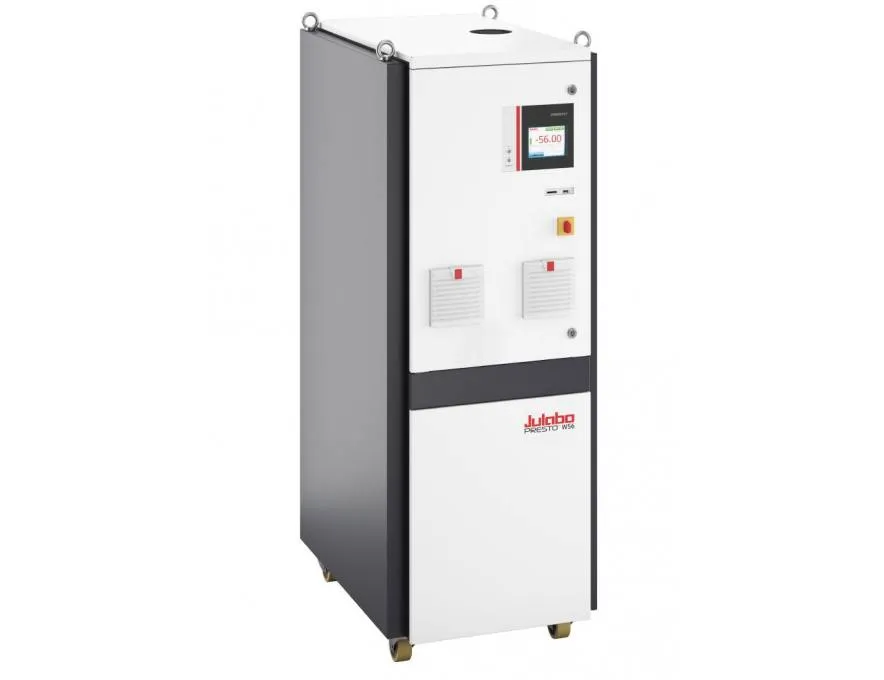

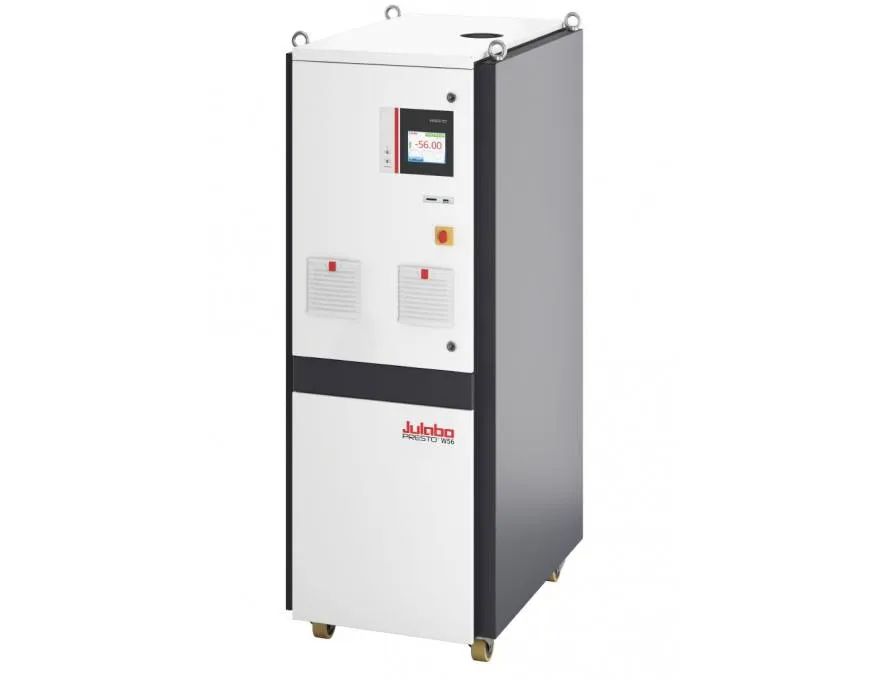

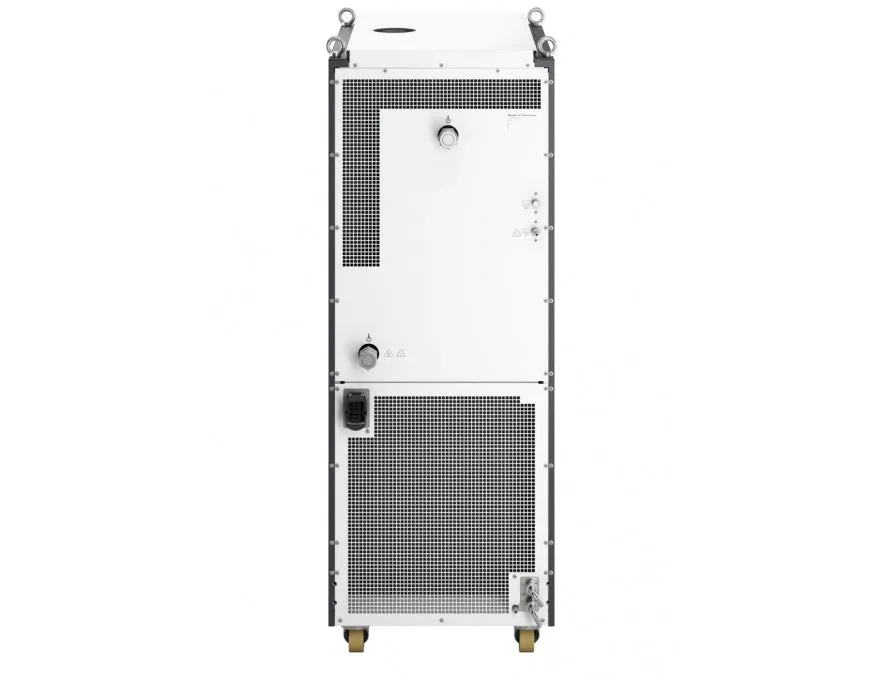

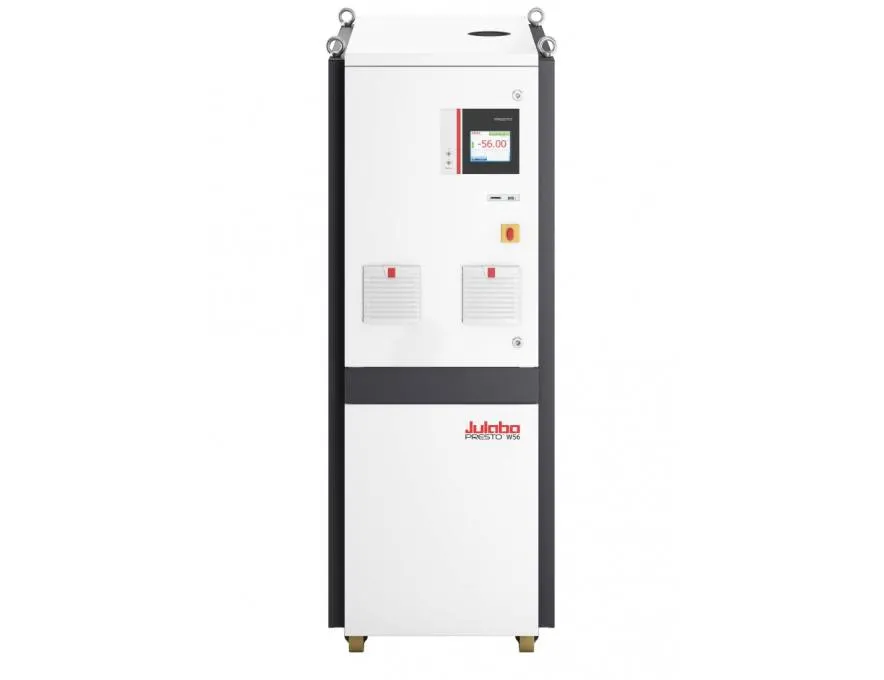

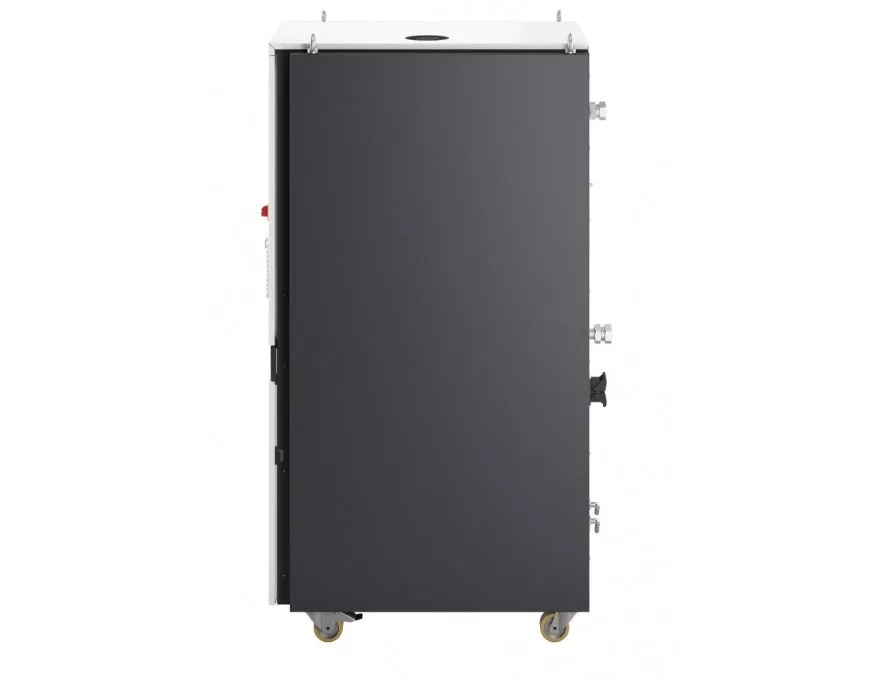

PRESTO W56 water-cooled highly dynamic temperature control unit. Range -56… 250 °C with 27 kW heating power and 25.8 kW cooling power at 20 °C.
- Powerful circulating pumps, electronically adjustable in stages or by setting the pressure valueChoose between a magnetically coupled centrifugal pump or a magnetically coupled gear pump for pressures up to 3.2 bar and virtually constant flow rate at any pressure
- Integrated 5.7” industrial color touchscreen displays all essential information and enables simple fingertip control
- Extensive warning, protection, and monitoring functions with detailed self-explanatory messages
- ICC cascade control for extraordinary precision, temperature stability ±0.05 °C ... ±0.2 °C
- Ambient temperature range 5 °C to 40 °C
- Integrated programmer with real-time clock
- Filling level indicator and pump capacity displayed electronically
- Interface for SD memory card
- Connections for USB, Ethernet, RS232, and Alarm output
- Integrated Modbus
- Optional analog connections, RS485, Profibus DP
- 1-stage water-cooled refrigeration system
- Sealed design enables operation to 150 °C with glycol/water and accessories
| Specifications | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Colling Capacity | °C | 200 | 20 | 0 | -10 | -20 | -30 | -40 | -50 |
| kW | 19 | 25.8 | 23.1 | 16.9 | 11.5 | 7.1 | 3.5 | 1.4 | |
| Heating or Cooling Capability | Both | ||||||||
| Dimensions W x L x H (in) | 23.6 x 37 x 64.6 | ||||||||
| External Devices | External Temp Probe, Remote Control | ||||||||
| Fluid Type | Silicone, Water/Glycol, Fluorinert/Galden | ||||||||
| Heating Capacity (kW) | 27 | ||||||||
| Power Options | 480 V / 3 PPE / 60 Hz, 400 V / PPE / 50 Hz | ||||||||
| Pump Capacity Flow Pressure (psi) | 7…46.4 | ||||||||
| Pump Capacity Flow Rate (l/min) | 35…80 | ||||||||
| Weight (lbs) | 849 | ||||||||
| Working Temp Range (°C) | -56 … 250 | ||||||||
