Product Description
-

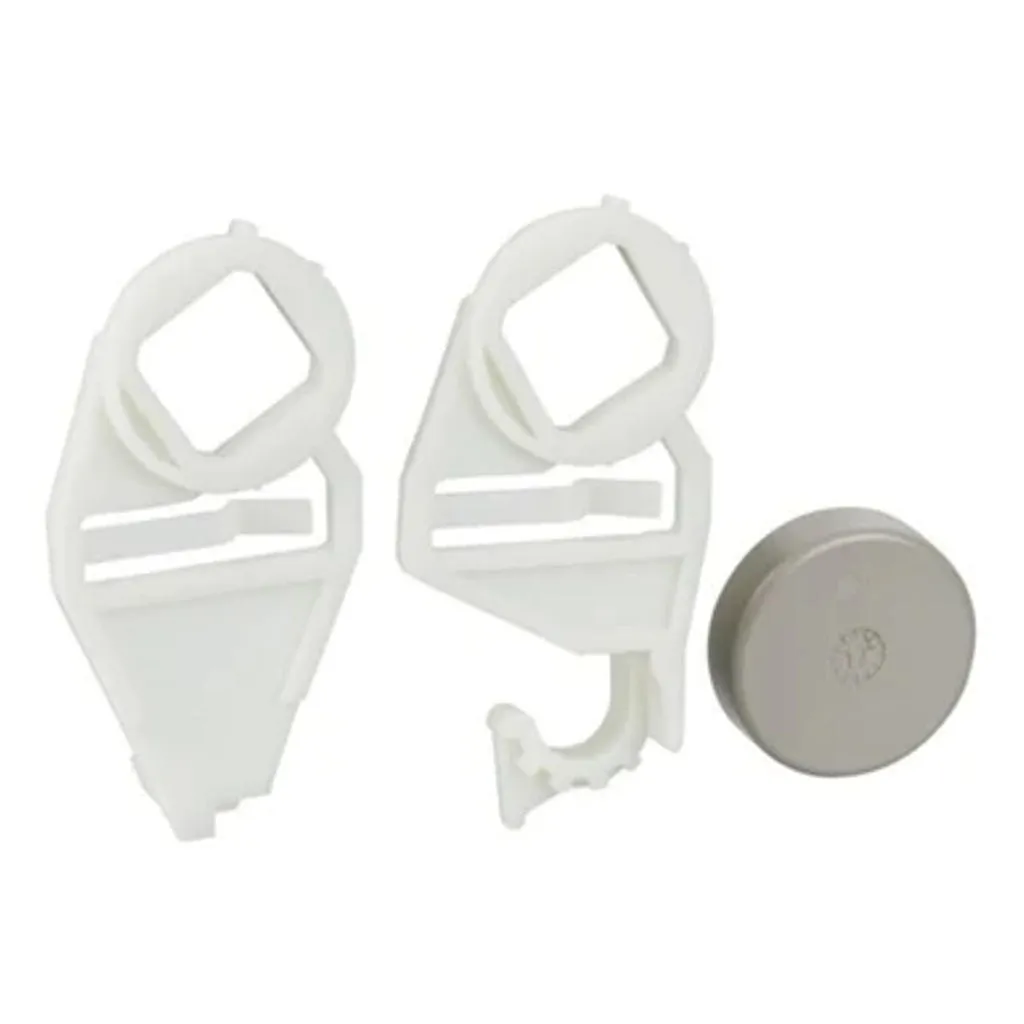

It is a rotary handle for Compact NSX 400/630, PowerPact Multistandard L frames and EasyPact CVS 400/630 devices
-
It is suitable for isolation and it is used for standard applications
-
It maintains the access to trip unit settings and to the push to trip button. It is equipped with a standard black handle
-
There is an indication of the three device positions O (OFF), I (ON) and tripped
-
The degrees of protection are IP40 and IK07
-
This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm)
-
As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock
Product Specification
|
Brand |
Schneider |
|
Model |
Compact NSX |
|
Product Code |
LV432604 |
|
Product Type |
Locking Of Rotary Handle |
|
Color |
Grey,White |
|
Device Short Name |
Rotary Handle Keylock Adaptor |
|
Product Or Component Type |
Padlocking Device |
|
Accessory / Separate Part Category |
Keylock Accessory |
|
Keylock Destination |
Rotary Handle |
|
Key Locking Position |
In Front |
|
Locking Options Description |
Without Keylocks |
|
Warranty |
As Per Manufacturer Terms and Condition |
