Brand

Schneider

Model Name

Zelio

Product Code | Control Circuit Voltage

RPM12JD | 12 V DC

RPM12B7 | 24 V AC

RPM12BD | 24 V DC

RPM12E7 | 48 V AC

RPM12ED | 48 V DC

RPM12FD | 110 V DC

RPM12F7 | 120 V AC

RPM12P7 | 230 V AC

Product Type

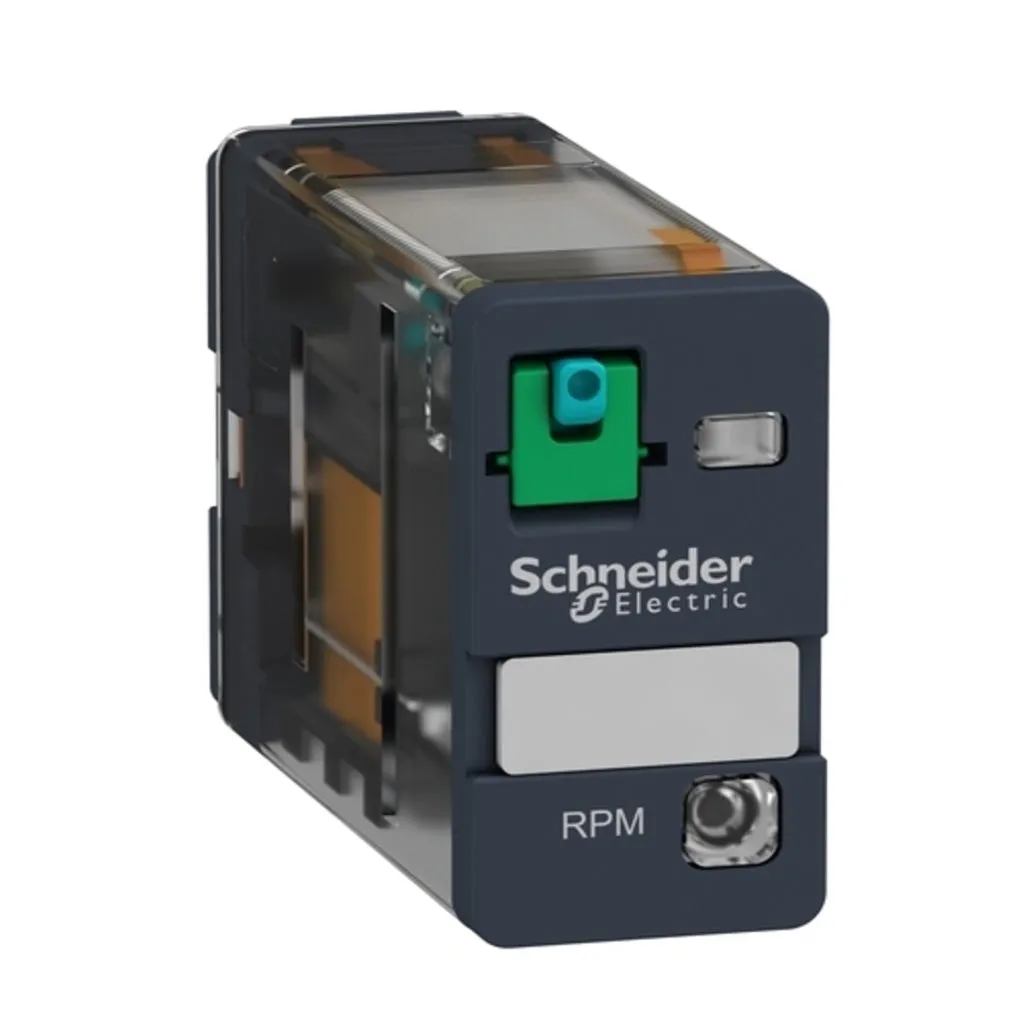

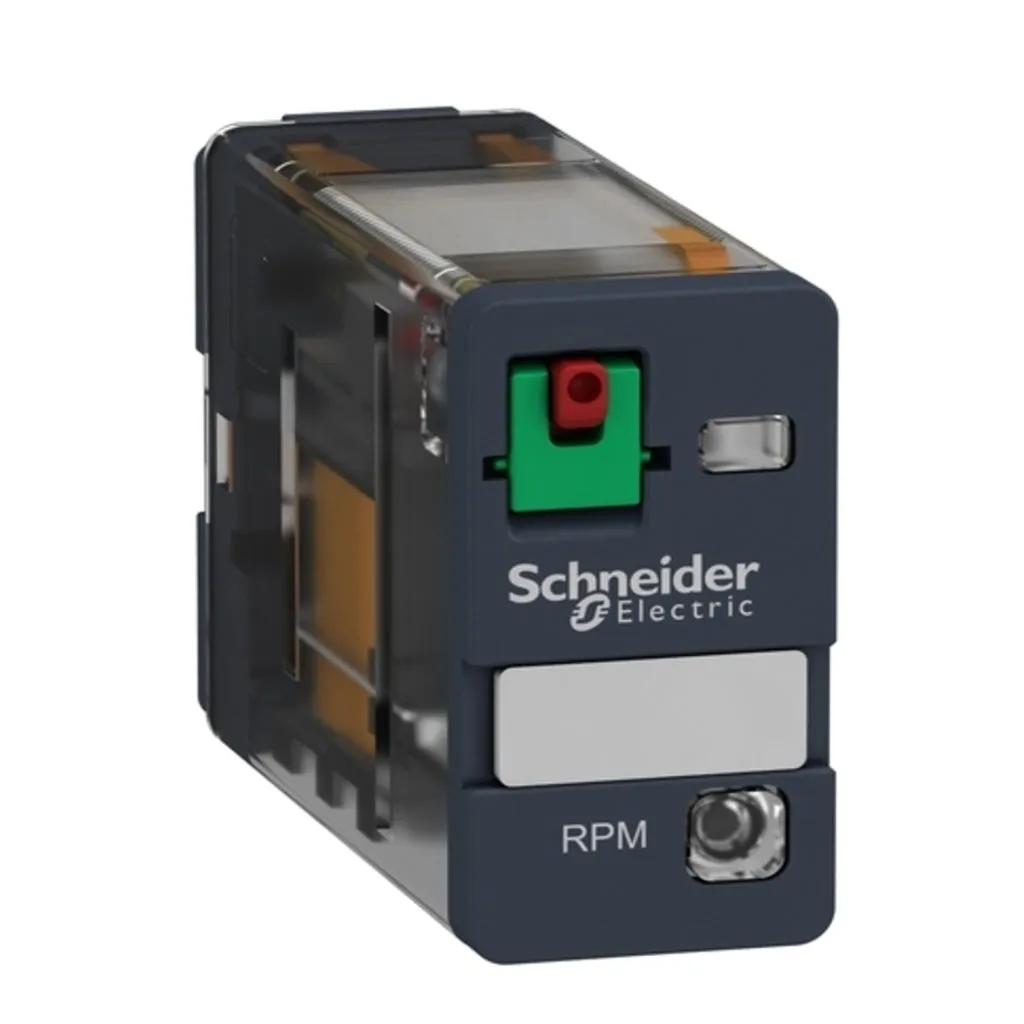

Plug In Power Relays

Series Name

Power

Device Short Name

RPM

Description

1 Change Over - 15 AMPS Contact Rating

Current Rating

15 A

Contacts Type And Composition

1 C/O

Utilisation Coefficient

20 %

Status LED

With

Control Type

Lockable Test Button

Shape Of Pin

Flat

Minimum Switching Capacity

170 mW at 10 mA, 17 V

Mechanical Durability

10000000 cycles

Maximum Switching Voltage

250 V Conforming To IEC

Operating Position

Any Position

Product Weight

0.026 Kg

Warranty

As Per Manufacturer Terms And Condition
